LMR14030SDDA
Manufacturer:
Texas Instruments
Mfr.Part #:
LMR14030SDDA
Datasheet:
Description:

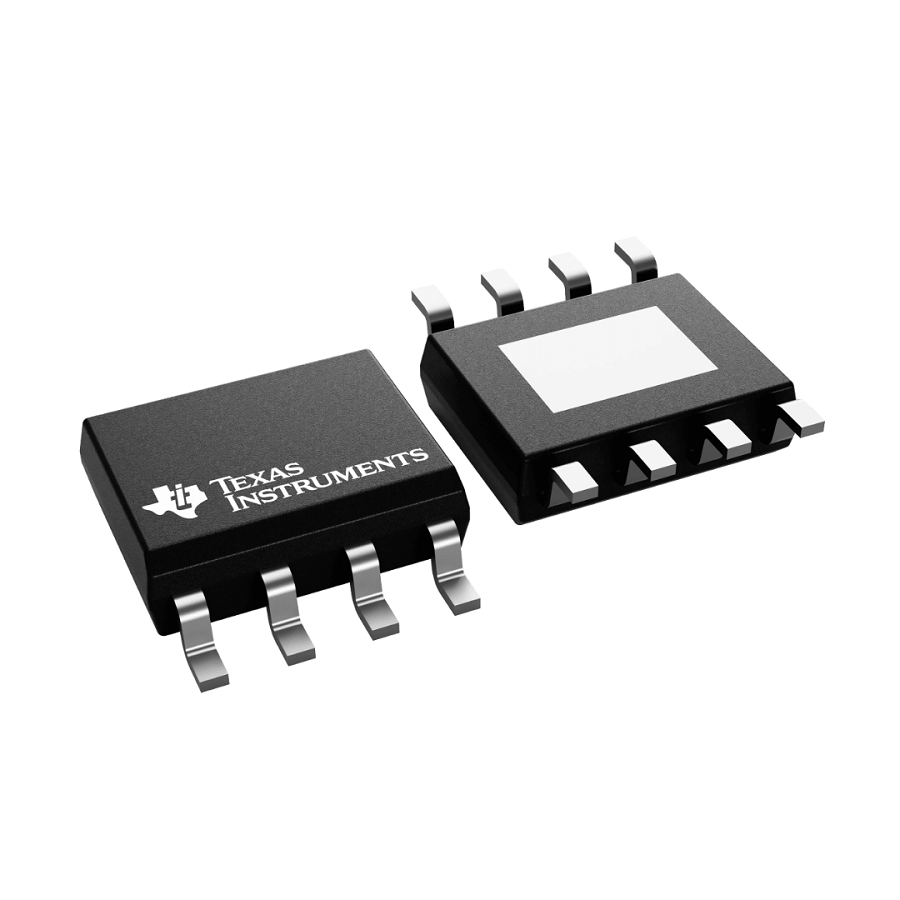

Voltage Regulators - Switching SO-PowerPad-8 SMD/SMT Buck Adjustable 28 V
| Parameter | Value |
|---|---|
| Length | 4.89 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.7 mm |
| Packaging | Reel |
| Thickness | 1.48 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 4 V |
| Output Current | 3.5 A |
| Output Voltage | 28 V |
| Output Type | Adjustable |
| Max Supply Voltage | 40 V |
| Min Supply Voltage | 4 V |
| Quiescent Current | 40 µA |
| Synchronous Rectifier | No |
| Output Configuration | Positive |
| Topology | Buck |
| Switching Frequency | 2.5 MHz |
| Max Input Voltage | 40 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 40 µA |
| Min Output Voltage | 800 mV |
| Max Junction Temperature (Tj) | 125 °C |
| Max Output Voltage | 28 V |
| Max Duty Cycle | 97 % |
Stock: 3055
Distributors
pcbx
pcbxUnit Price$2.29036
Ext.Price$2.29036
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.29036 | $2.29036 |
| 10 | $1.72696 | $17.26960 |
| 25 | $1.45851 | $36.46275 |
| 50 | $1.38126 | $69.06300 |
| 100 | $1.30810 | $130.81000 |
| 300 | $1.23880 | $371.64000 |
| 500 | $1.20411 | $602.05500 |
| 1000 | $1.17040 | $1170.40000 |
